| Tank |
Specifications |
Toyota Hilux YN67 D/C & S/C 1985 - 1997
(Gravity Feed)
70L |
Consists Of:

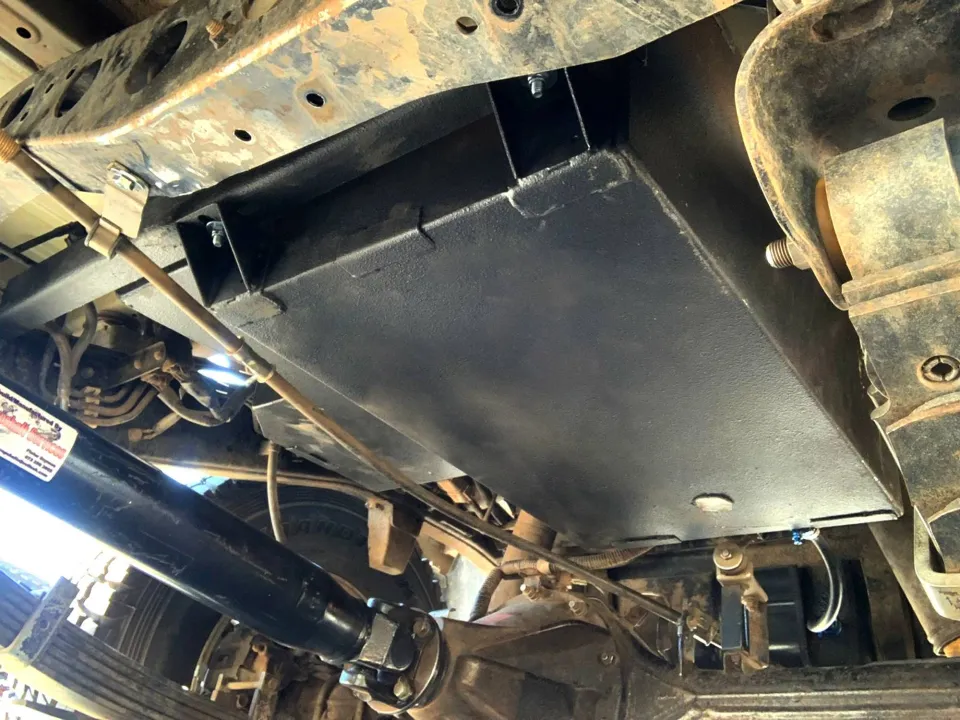

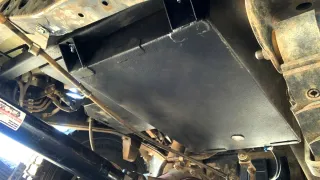

Aux Fuel Tank
Angle Brackets 1 Set (2 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
PiD Drawing
Tank Insert Diagram
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Electroplated Silver Steel Bracket
Rubber Fuel Hoses.
Product Dimensions
Tank Dimensions – 850 X 750 X 213mm
Box Size For Shipment – 910 X 310 X 820mm
Weight:
32 Kg
|
Toyota Hilux P690/5 D/C & S/C 1999 - 2005
(Gravity Feed)
83L |
Consists Of:
Aux Fuel Tank
Bracket Set (3 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
PiD Drawing
Tank Insert Diagram
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Electroplated Mild Steel Brackets
Rubber Fuel Hoses
Product Dimensions
Tank Dimensions – 880 X 80 X 210mm
Box Size For Shipment – 1120 X 850 X 230mm
Weight:
34 Kg
|
Toyota Hilux Vigo D/C, C/C & S/C 2005 - 2015
88L |
Consists Of:
Aux Fuel Tank
Bracket Set (2 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
Pid Drawing
Material:
1.5mm 409/3CR12 Stainless Steel Tank (Stone Chipped Black)
Electro Plated Brackets
Rubber Fuel Hose
Product Dimensions
Tank Dimensions – L 836 X W 790 X H 220
Box Size For Shipment – L=1130 X W=230 X H=860mm
Weight:
32 Kg
|
Toyota Hilux Revo D/C, C/C & S/C 2016 - Current
80L |
Consists Of:
Aux Fuel Tank
Brackets 1 Set (2 Brackets) Installation
Hose Set
Installation Hardware
Fitting Instructions
PiD Drawing
Tank Insert Diagram
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish.
Rubber Fuel Hoses.
Product Dimensions
Tank Dimensions – L=836 X W=790 X H=220 Mm
Front Bracket – L= 989 X W=80 X H=80 Mm
Rear Bracket – L=1120 X W=40 X H=40 Mm
Box Size For Shipment – L=1130 X W=230 X H=860mm
Weight:
32 Kg
|
Toyota L/Cruiser FJ 75/79 1984 - 2007
(Gravity Feed)
93L |
Consists Of:
Aux Fuel Tank
Bracket Set (Shock Hanger Bracket)
Hose Set With Angle Filler Neck
Installation Hardware
Fitting Instructions
Tank Insert Diagram
PiD Drawing
Material:
409 Stainless Steel (Stone Chip Black)
Rubber Fuel Hoses
Electroplated Bracket
Product Dimensions
Tank Dimensions – 1031 X 970 X 235
Box Dimensions – L = 1120 X W = 850 X H = 230
Weight:
+- 50kg
|
Toyota L/Cruiser FJ 80 S/Wagon 1990 - 1997
(Gravity Feed)
73L |
Consists Of:
Aux Fuel Tank
Front And 2x Rear Brackets
Hose Set
Installation Hardware
Tank Insert Diagram
PiD Drawing
Material:
1.5 mm 409/3CR12 Stainless Steel Tank (Stone Chip Black)
Rubber Hoses
Mild Steel Electroplated Front Bracket
Product Dimensions
Tank Dimensions: L= 1050 X W= 600 X H= 190
Front Bracket: L= 423 X W= 75 X H= 35
Box Size For Shipment: L= 1130 X W= 860 X H= 230
Weight:
+- 40kg
|
Toyota L/Cruiser FJ 100 S/Wagon VX 1998 - 2007
(Gravity Feed) (Conf GX)
60L |
Consists Of:
Aux Fuel Tank
Bracket Set (3 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
PiD Drawing
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Rubber Fuel Hoses
Mild Steel Electroplated Brackets
Product Dimensions
Tank Dimensions – L= 1200 X W= 625 X H= 149
Box Size For Shipment – L= 1130 X W= 230 X H= 860
Weight:
+ - 35Kg
|
|
Toyota L/Cruiser FJ 100 S/Wagon VX 1998 - 2007
(Gravity Feed)
100L
|
Consists Of:
Aux Fuel Tank
Bracket Set (3 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
PiD Drawing
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Rubber Fuel Hoses
Mild Steel Electroplated Brackets
Product Dimensions
Tank Dimensions - 1030 X 520 X 145
Box Size for Shipment – 1150 X 860 X 225
Weight:
+- 30kg
|
Toyota L/Cruiser FJ 100 S/Wagon GX 1998 - 2007
(Gravity Feed)
100L |
Consists Of:
Aux Fuel Tank
Bracket Set (3 Brackets)
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
PiD Drawing
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Rubber Fuel Hoses
Mild Steel Electroplated Brackets
Product Dimensions
Tank Dimensions - 1030 X 520 X 145
Box Size for Shipment – 1150 X 860 X 225
Weight:
+- 30kg
|
Toyota L/Cruiser 200 Series 2008 - 2022
(Gravity Feed)
50L
|
Consists Of:
Aux Fuel Tank
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
Pid Drawing
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish.
Rubber Fuel Hose
Product Dimensions
Tank Dimensions – L= 1100 X W= 635 X H= 200
Box Size For Shipment – L= 1120 X W= 850 X H= 230
Weight:
50 KG
|
Toyota L/Cruiser 70 Series D/Cab
(Gravity Feed)
80L |
Consists Of:
Aux Fuel Tank
Brackets Set (Angel Front, Angle Rear)
Hose Set
Installation Hardware
Fitting Instructions
PiD Drawing
Tank Insert Diagram And Balancing Value
Replacement Exhaust Optional
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish
Rubber Fuel Hoses
Product Dimensions
Tank Dimensions – L= 666 X W= 700 X H= 320
Box Size For Shipment – 1120mm X 230mm X 860mm
Front Bracket – 932mm x 50mm x 118mm
Rear Bracket – 1000mm x 50mm x 135mm
Weight:
45KG
|
Toyota Fortuner 2006 - Current
(Gravity Feed)
50L |
Consists Of:
Aux Fuel Tank
1 x Hanger Bracket
Hose Set
Installation Hardware
Fitting Instructions
PiD Drawing
Material:
1.5 mm 409/3cr12 Stainless Steel Tank
Stone Chip Finish Steel Bracket
Rubber Fuel Hoses
Product Dimensions
Tank Dimensions – 820mm X 820mm X 153mm
Bracket Dimensions – 463mm X 815mm
Box Size For Shipment – 1130mm X 230mm X 860mm
Weight:
+- 23 Kg
|
Toyota Fortuner F/Pump 2006 - 2015
100L |
Consists Of:
Aux Fuel Tank
1 x Hanger Bracket
Hose Set
Installation Hardware (Fuel Pump & Electrical)
Fitting Instructions
Material:
1,5 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish.
Rubber Fuel Hoses
Product Dimensions
Tank Dimensions – L 750mm X W 840mm X H 260mm
Bracket Dimensions – L 508mm X W 852mm X H 143mm
Box Size For Shipment – L 1120mm X W 850mm X H 400mm
Weight:
+- 60Kg
|
Toyota FJ Cruiser up to 2012
(Gravity Feed)
100L |
Consists Of:
Aux Fuel Tank
Hose Set
Installation Hardware
Fitting Instructions
Tank Insert Diagram
PiD Drawing
Material:
2.0 mm 409/3CR12 Stainless Steel Tank With A Black Stone Chip Finish.
Rubber Fuel Hoses
Product Dimensions
Tank Dimensions – L=607 X W= 1073 X H= 262
Box Size For Shipment – L= 1130 X W= 850 X H= 230
Weight:
+ - 48 KG
|
